EEV vs TXV: Why One Handles Low Condensing Pressure Better

A fixed-orifice TXV can only open so far. In contrast, an electronic expansion valve can open further to compensate for the loss of condensing pressure, a difference that shows up directly in compressor efficiency.

15 september 20261 min read

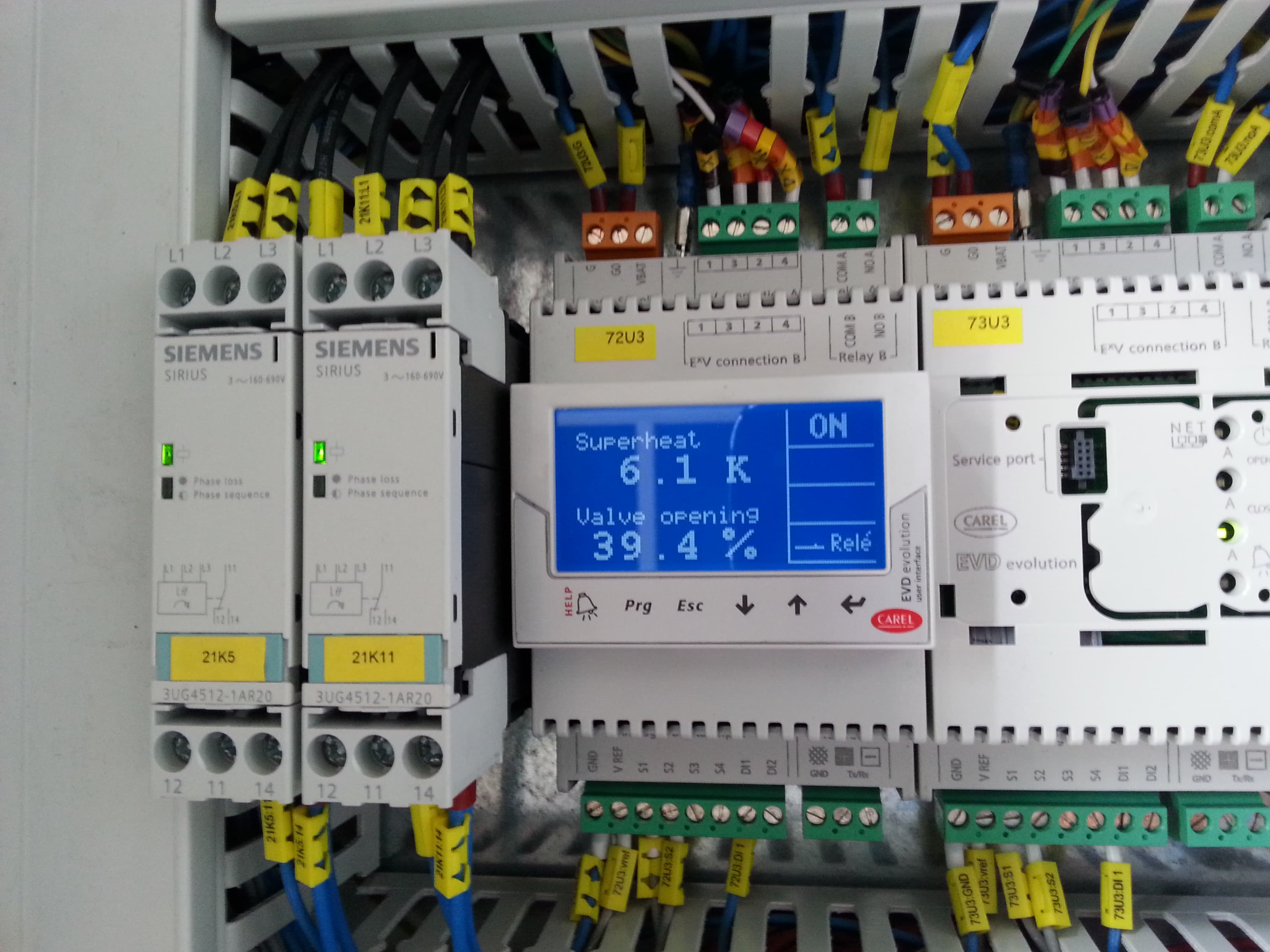

Electronic expansionvalve
  1. A thermostatic expansion valve has a fixed orifice. Flow through that orifice depends on the pressure difference across it. When condensing pressure drops below design, say on a cold night, that difference shrinks. Capacity drops with it. The valve can't open further to compensate. Superheat rises above design.
  2. An electronic expansion valve uses a modulating orifice, driven by a stepper motor or pulse-width signal. It can open further, up to fully open, to make up for that same drop in pressure difference. Superheat stays closer to target under the same conditions.
  3. That gap costs energy. Every 1K the evaporating temperature drops costs roughly 2-3% more compressor energy. A fixed-orifice valve pays that penalty every time condensing pressure dips. An electronic valve recovers more of it.
    Tracking condensing pressure and superheat over time catches that gap building before it shows up on the energy bill.
